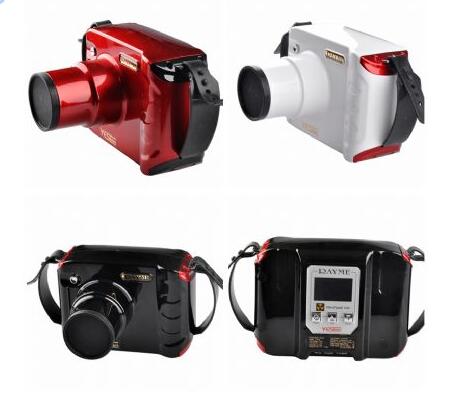

Products Product name:Korea Yes Brand Wireless Dental X Ray Machine     Features Battery-pack - Material : Lithium-Polymer - Charge Condition Current : 1.0 A Voltage : 16.8 VDC Temperature : 0 °C ~ 40° C - Use condition Max. current : 10 A Voltage range : 12(min) ~ 16.8(MAX) V Temperature : -20 °C ~ 60 °C Charger - Model : JBL910A-1600 - Input Voltage : 100 ~ 250 VAC - Output Voltage : 16.8 VDC - Current : 1.0A Technical Data Name: Rayme Tube Voltage : 70kV(fixed) Tube Current : 1mA(fixed) X-Ray Tube type : Bipolar fixied X-ray tube X-Ray Tube model : DG-073B-DC X-Ray Tube Focal Size : 0.3*0.3mm Cooling system : Oil cooling Total filtration : 1.6 mm Al (Inherent filtration : 0.8mm, fixed added filter :0.7 mm Aluminum) Target angle : 21° Time Set-up function : 0.10 ~ 1.80 sec Source to image receptor distance : >10cm (fixed by cone) X-ray field : 50 mm (round-style) Size of main body : 139(W) x 163(H) x 66.5mm(D) Weight of body : About 1.8 kg (except the battery pack)
